What is a power supply in a computer?
A computer’s power supply unit (PSU) converts the high-voltage alternating current (AC) from the wall outlet into the low-voltage direct current (DC) needed by the computer’s components. It is a critical hardware component that supplies stable and regulated power to the motherboard, drives, and other parts of the system. PSUs are typically internal, located at the back of the computer case, and are rated by the amount of wattage they can generate.
Key functions:
- Power conversion: Converts the
110−115110 minus 115110−115 or
220−230220 minus 230220−230 volt AC from the mains into the stable, low-voltage DC (
+3.3Vpositive 3.3 cap V+3.3𝑉,
+5Vpositive 5 cap V+5𝑉,
+12Vpositive 12 cap V+12𝑉) that the computer needs to operate.
- Voltage regulation: Ensures that the voltage supplied to each component is consistent and within the required range.
- Power distribution: Distributes power to all internal components through various connectors, such as those for the motherboard, hard drives, and graphics cards.
Where it’s located?

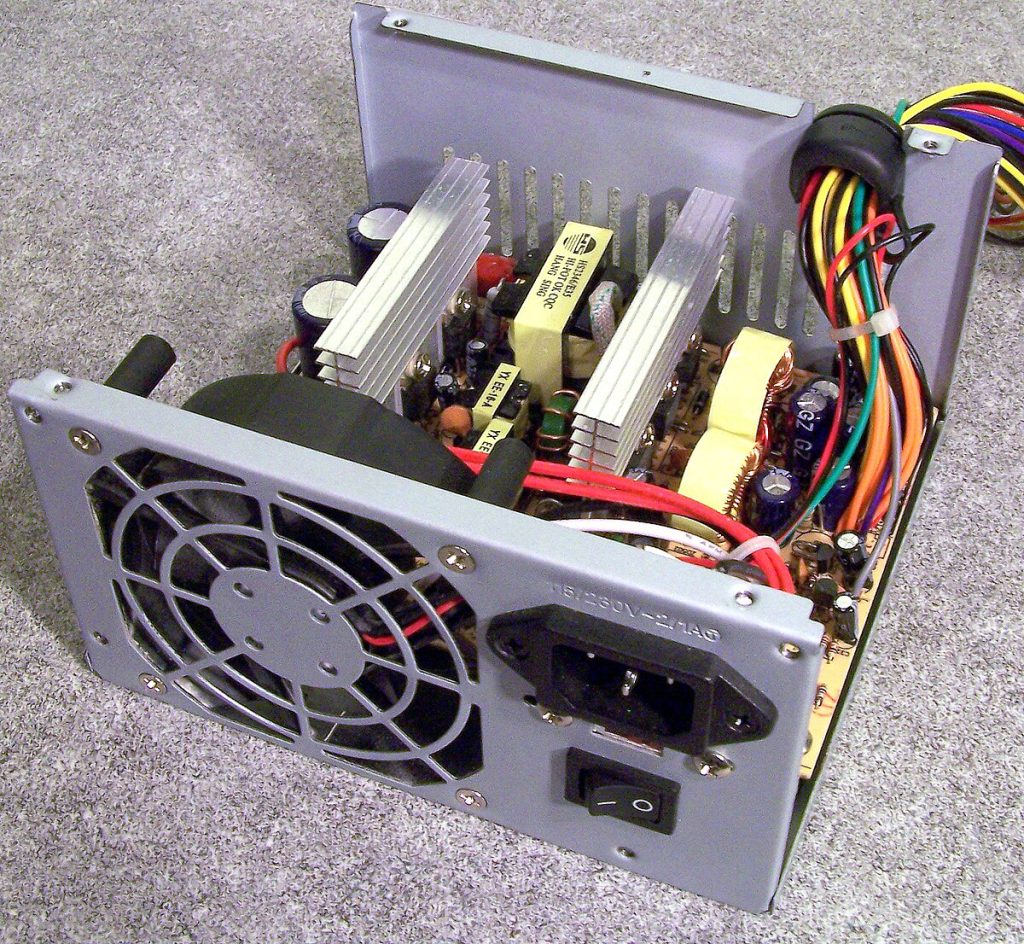

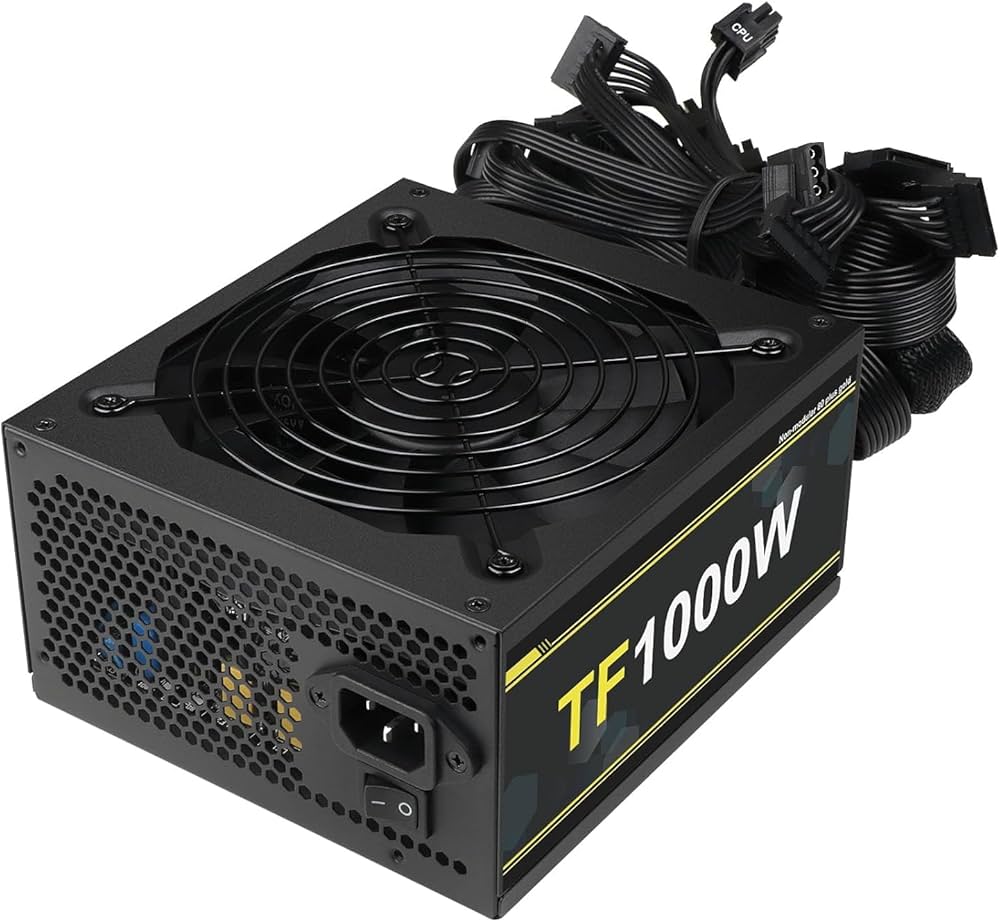

- In a desktop PC, the PSU is a metal box, usually in a corner of the case, with its own power cord receptacle and cooling fan visible from the back.
- In many modern tower cases, the power supply is located at the bottom rear.
- For laptops, the power supply is often a separate external brick (adapter) that connects the AC wall power to the laptop’s DC input.
Important considerations:
- Wattage: The PSU’s wattage rating indicates the maximum amount of power it can provide to the system. It’s important to have a PSU with enough continuous power output for your components’ needs, rather than just peak power.
- Efficiency: A PSU’s efficiency rating indicates how much power is lost as heat during the conversion process. A more efficient PSU wastes less energy.
What is a power supply called?
A power supply can be called a Power Supply Unit (PSU), especially for computers, or an AC adapter for external devices. Other terms include electric power converter or switched-mode power supply (SMPS), which is a common internal type of PSU that converts AC power from a wall outlet into the DC power needed by electronic components.
Common terms for power supplies
- Power Supply Unit (PSU): This is the most common term for the internal component in a computer or other device.
- AC adapter: This term is used for external power supplies, which are often called wall chargers or power bricks.
- Switched-Mode Power Supply (SMPS): This is a specific and very common type of internal power supply that uses a switching regulator to efficiently convert and regulate voltage.
- Electric power converter: A general term for any device that converts electrical power from one form to another.
- Uninterruptible Power Supply (UPS): This is a more specific type that provides backup power from a battery in case of a power outage.
What are the four types of power supply?
The four common types of power supplies are linear, switching (SMPS), uninterruptible (UPS), and programmable, each with distinct characteristics and uses. Linear supplies provide stable, low-noise power, while switching supplies are more efficient and compact. UPS systems provide backup power during outages, and programmable supplies allow for precise control of output values.
- Linear Power Supply: Converts AC to DC using a transformer, rectifier, and regulator. It’s known for providing a stable and low-noise output, making it suitable for sensitive electronics. However, they are often less efficient and larger than switching supplies.
- Switching Power Supply (SMPS): Uses high-frequency switching to be more efficient and compact. SMPS are common in many devices because they are lightweight and cost-effective, though they can generate more electrical noise.
- Uninterruptible Power Supply (UPS): Provides a continuous power source, typically by using a battery, to ensure equipment continues to run during a power outage or fluctuation. This is critical for devices that require uninterrupted operation.
- Programmable Power Supply: Allows the user to digitally set and control specific voltage and current values. These are used in laboratories and test environments where precise and adjustable power is needed for experimentation and testing.
What are the 5 power supply connectors?
What types of connectors and cables are used in PC power supplies?
- 24-pin ATX (20+4) The main cable that supplies power to the motherboard. …
- CPU / EPS (4-pin, 4+4-pin, or 8-pin) It supplies power to the processor. …
- PCIe power connector (6-pin, 6+2-pin, 12VHPWR / 12V-2×6) …
- SATA Power (15-pin) …
- Molex (4-pin) …
- GPU.
How many types of power supply for PC?
Common types of DC power supplies include linear power supplies, switching power supplies, DC-DC converters, and silicon controlled rectifier (SCR) type power supplies.
What is a good wattage for a power supply?
Consider the Wattage Buffer: Remember that power supplies work most efficiently at 50%-80% of their specified maximum, so it’s advised to invest in a supply with some wattage overhead. For example, if your system requires 500W, opting for a 600–650W PSU is a safe choice.
